Odyssey Utility Hatch

from $400.00

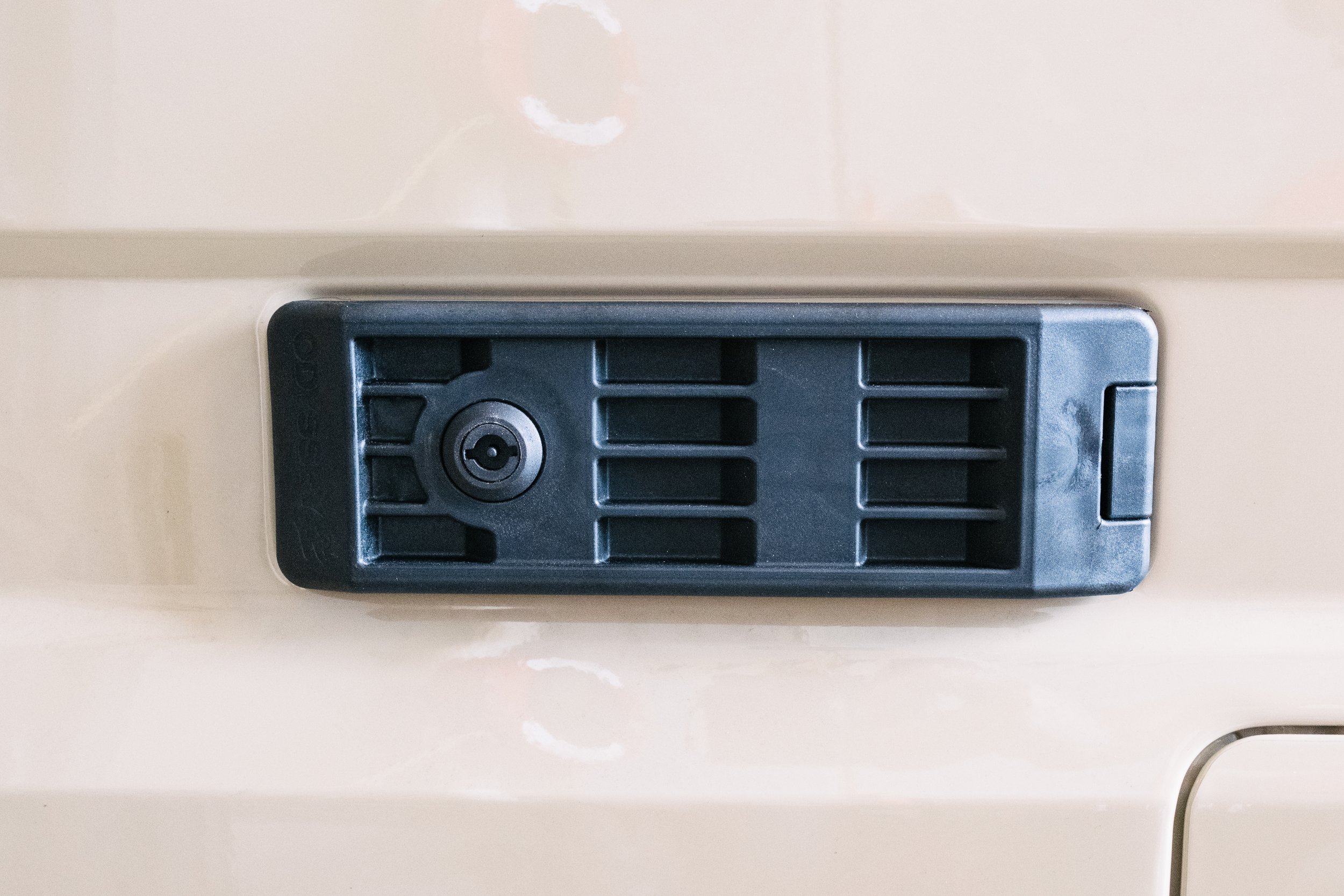

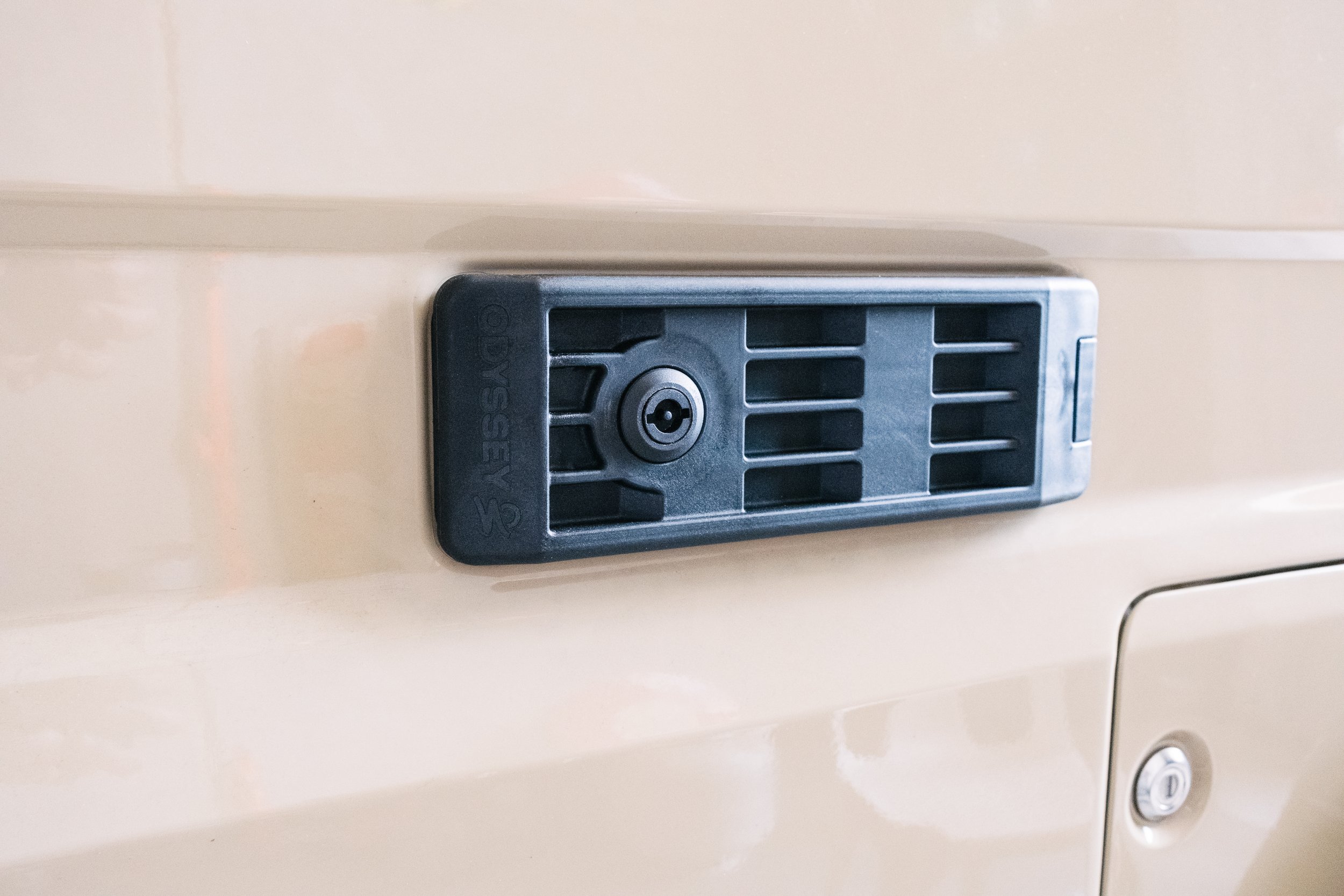

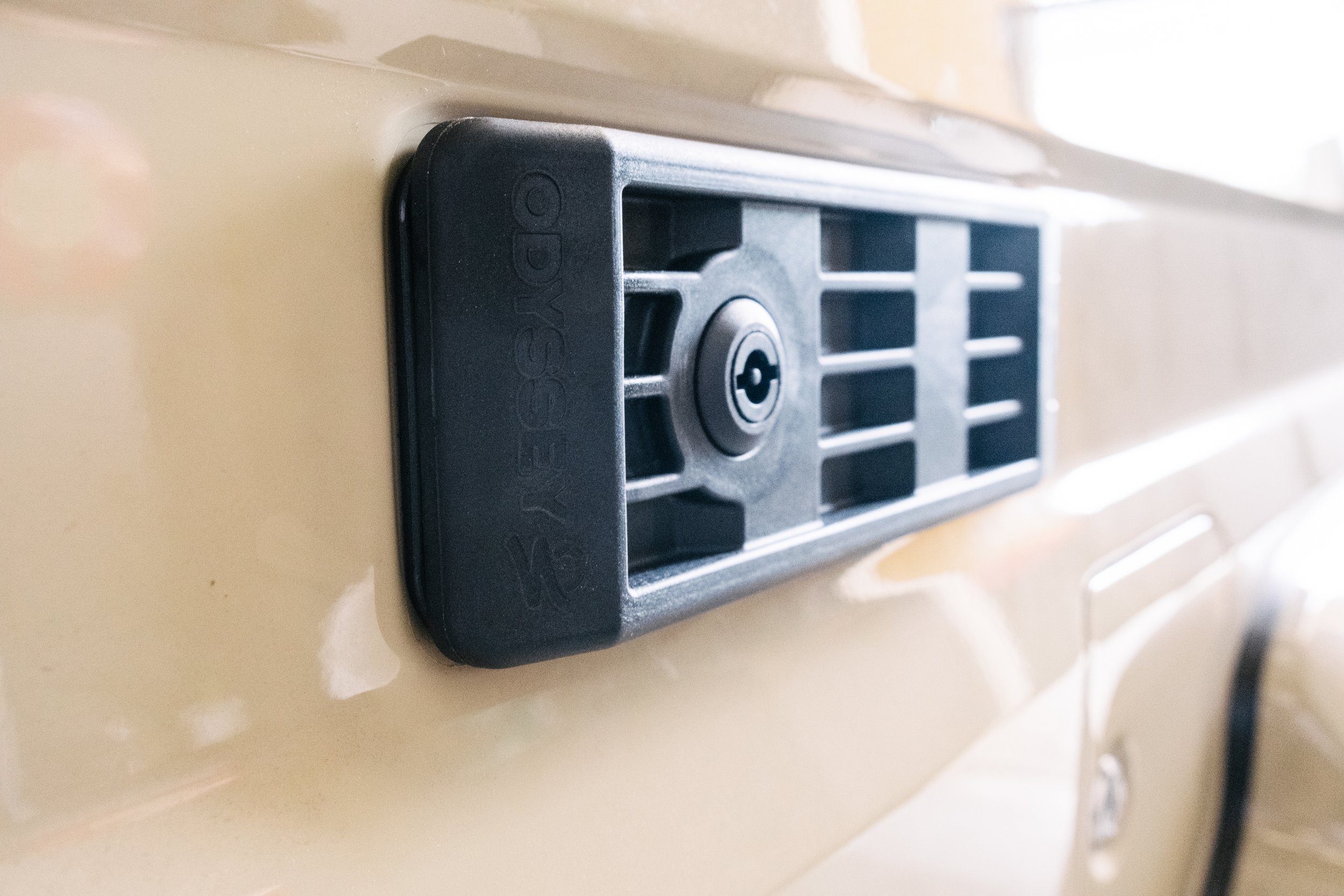

Our Utility Hatch is designed to make the most of your Troopy’s vent panel space — with zero compromise on looks or functionality. Whether you’re running water, power, air or all of the above, this sleek little hatch keeps everything sealed, secure, and easily accessible. It blends right in like it came from factory, but works hard like the rest of your setup.

Defining Features:

  • Utility hatch - uses the vent panel hole in the Troopy.

  • Can be both on drivers side and passengers side.

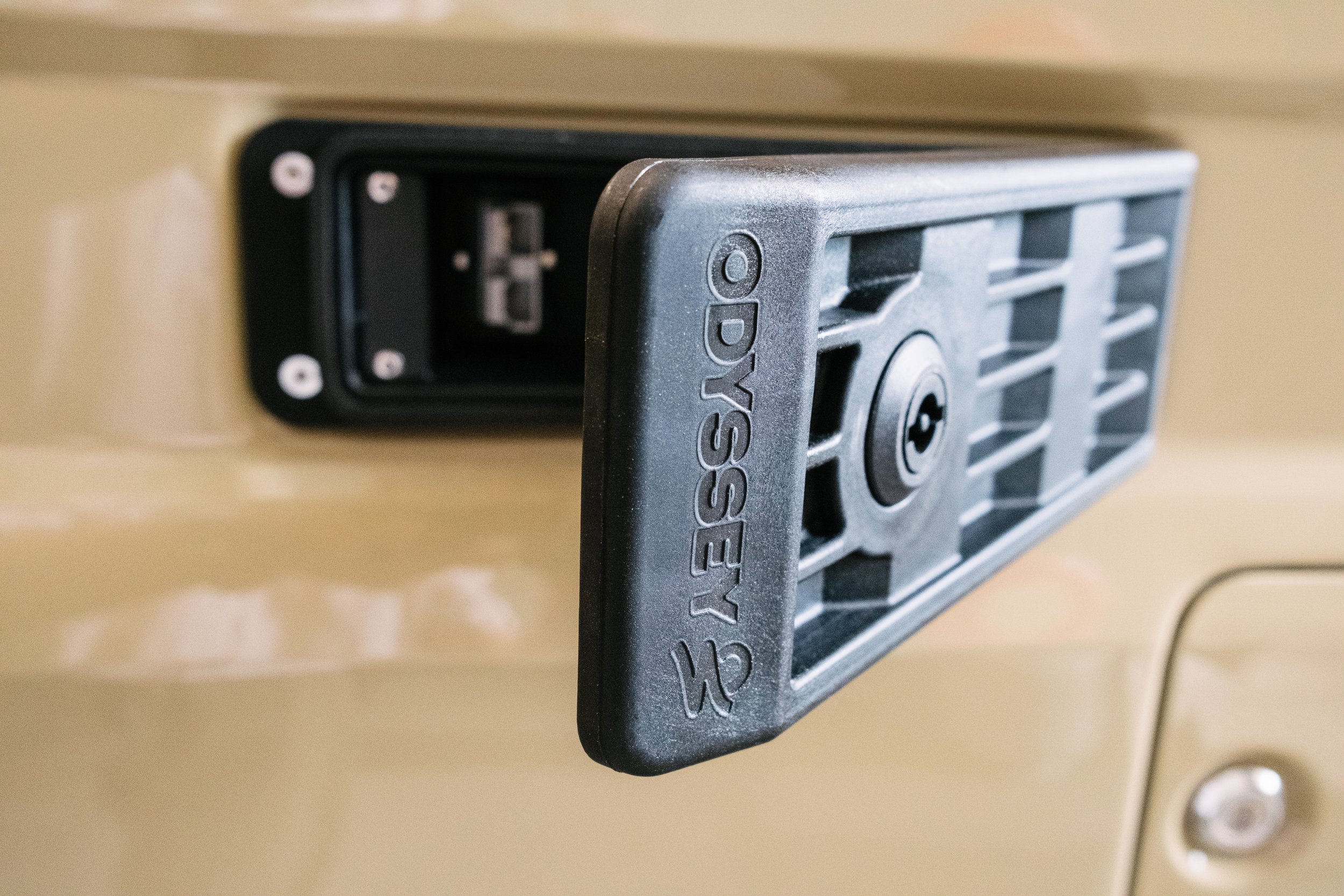

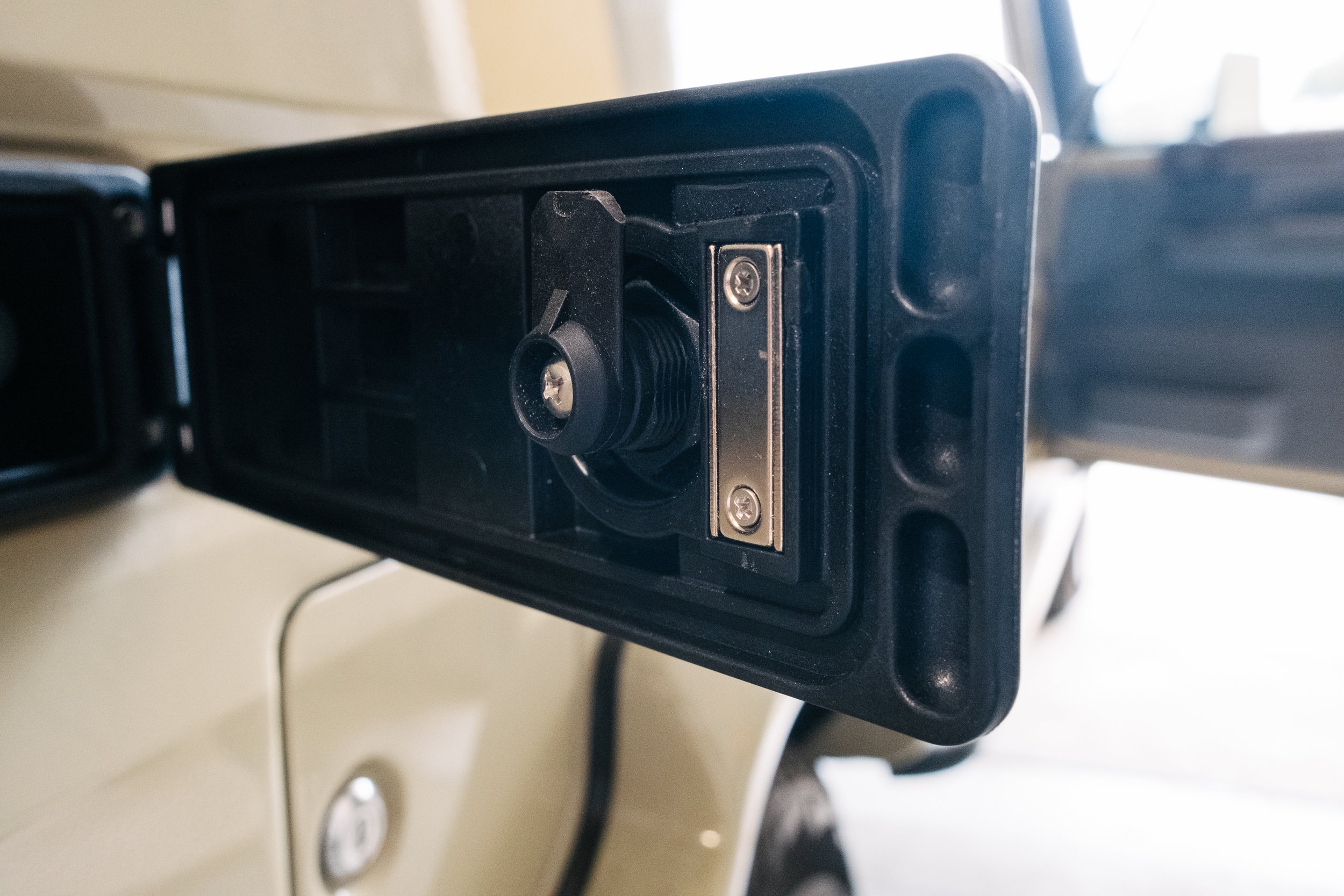

  • Lockable, sealable, magnetised, hinged hatch.

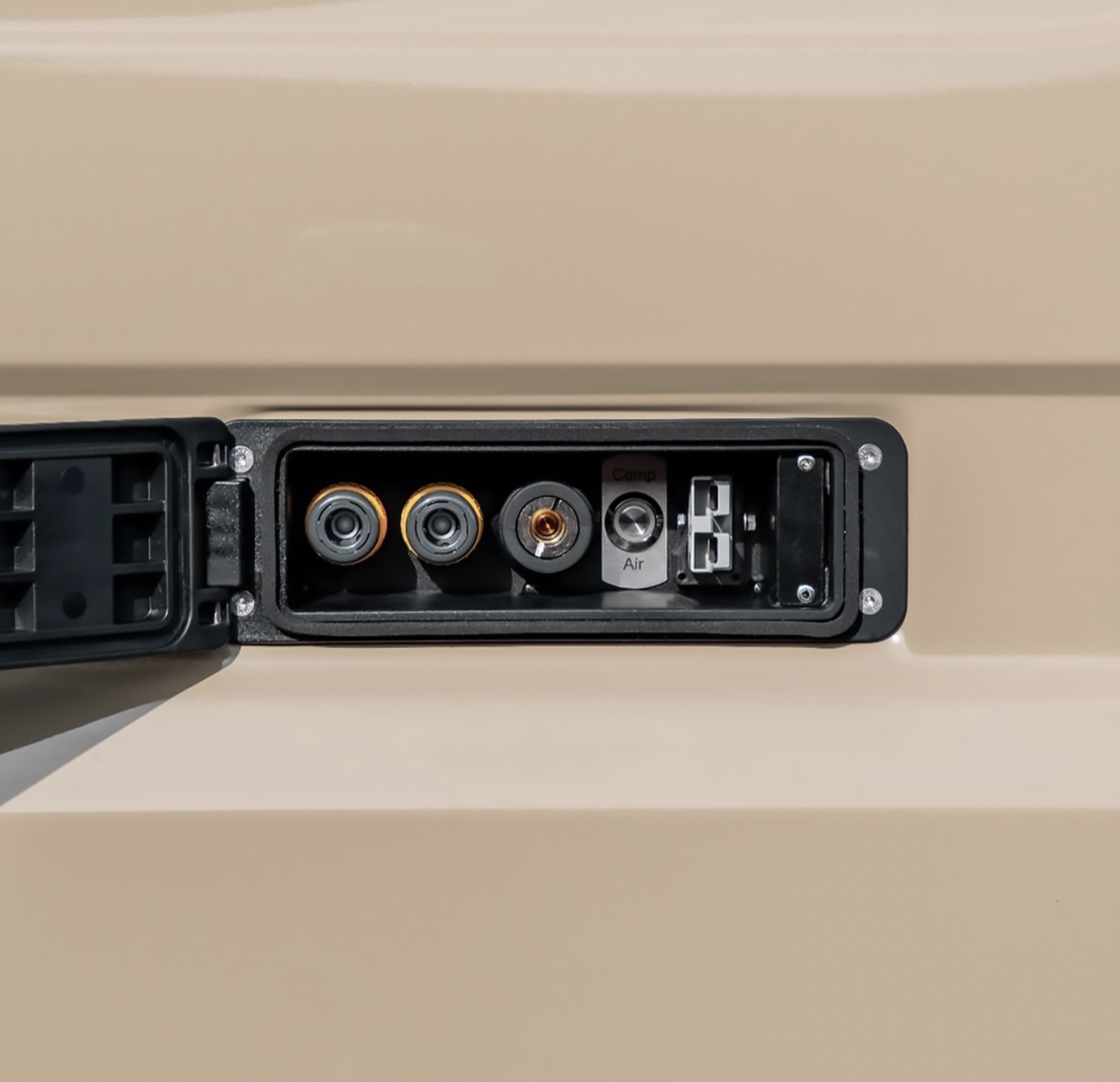

  • Can house water tank filler and outlet, air compressor outlet, anderson plugs for in and out - the configuration is customisable.

  • Stock looking - genuine as we could get it.

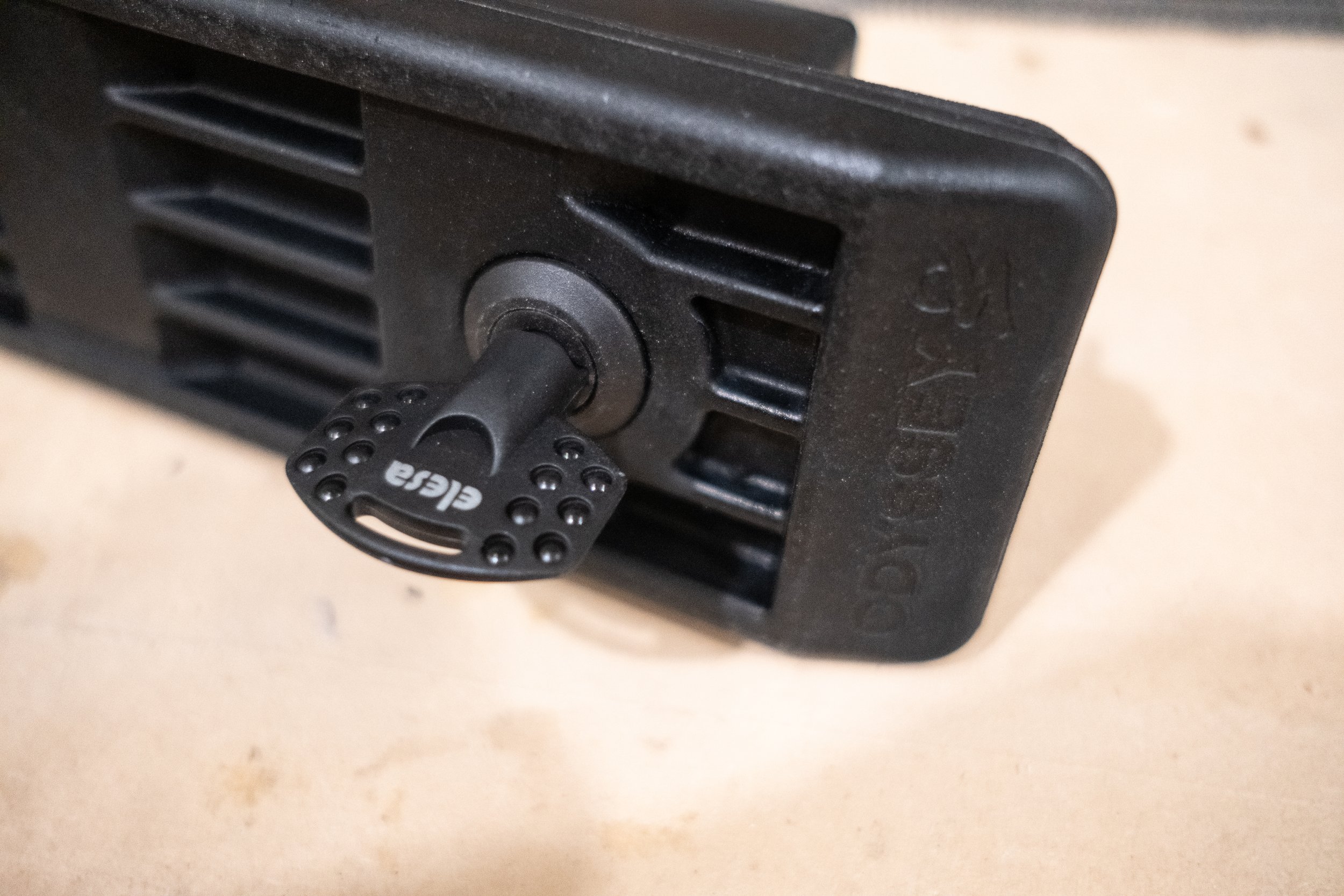

  • You can choose to use the lock or just the magnetised function for closing.

Construction and Materials:

  • No drilling involved.

  • Injection moulded from fibreglass reinforced nylon plastic (FGRP).

  • Stainless steel fixings.

  • Neoprene seals.

Fitting:

  • Quick installation.

  • Remove the original vent.

  • Retain the nuts from the original vent.

  • We supply the bolts but use the retained nuts to bolt it on.

Dimensions and Weight:

  • Length 255mm, height 80mm and depth 70mm.

  • Weight 0.5kg

Option:

Our Utility Hatch is designed to make the most of your Troopy’s vent panel space — with zero compromise on looks or functionality. Whether you’re running water, power, air or all of the above, this sleek little hatch keeps everything sealed, secure, and easily accessible. It blends right in like it came from factory, but works hard like the rest of your setup.

Defining Features:

  • Utility hatch - uses the vent panel hole in the Troopy.

  • Can be both on drivers side and passengers side.

  • Lockable, sealable, magnetised, hinged hatch.

  • Can house water tank filler and outlet, air compressor outlet, anderson plugs for in and out - the configuration is customisable.

  • Stock looking - genuine as we could get it.

  • You can choose to use the lock or just the magnetised function for closing.

Construction and Materials:

  • No drilling involved.

  • Injection moulded from fibreglass reinforced nylon plastic (FGRP).

  • Stainless steel fixings.

  • Neoprene seals.

Fitting:

  • Quick installation.

  • Remove the original vent.

  • Retain the nuts from the original vent.

  • We supply the bolts but use the retained nuts to bolt it on.

Dimensions and Weight:

  • Length 255mm, height 80mm and depth 70mm.

  • Weight 0.5kg

VARIANTS

Variant           Anderson Air Nitto
Blank 0 0 0
Option 1 0 1 3
Option 2 2 0 1
Option 3 1 1 2
Option 4 1 0 1
Option 5 2 1 2

There are multiple variations available. Blank is our cheapest option, where you get a solid powder-coated aluminium backing plate that you can customise yourself.

The other options are listed in the table above.

Anderson Connectors

Andersons can be supplied as standard grey for DC OUT, or as a red anderson, for DC IN from a solar blanket or similar.

Air

The Air fitting is the only one not included in the package. The routed shape is to suit ARB 'Hose coupling US Industrial to JIC-4'(M)' Part No. 0740111

Nitto

The Nitto fitting fitting for water can be used for filling water tanks, or hot/cold water outlets.

Custom Requests

Head to the Contact Us page to request a Quote on a custom backing plate just for you! We can route the space for the fittings and have it powder coated for maximum durability and protection.
